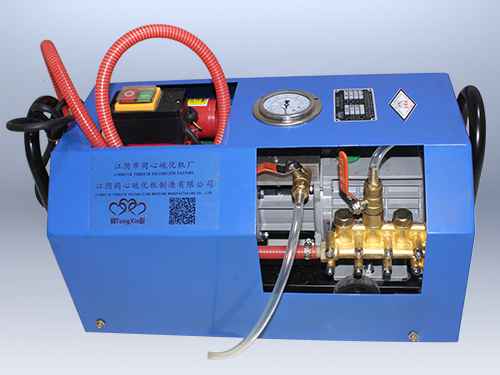

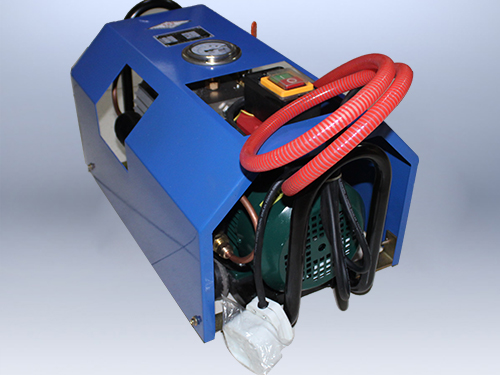

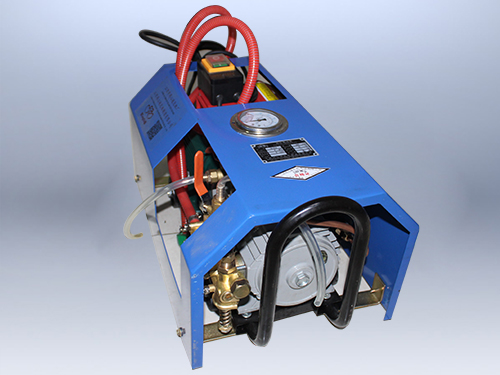

LB-7X10 high pressure electric pump

First, the structural characteristics:

    The special high-pressure water pump specially designed for the tape vulcanizing machine is a three-cylinder plunger pump driven by single-phase or three-phase motor. It has the characteristics of compact structure, small size, light weight, reliable operation and convenient maintenance. It is portable. Electric hydraulic pump.

    The plunger of the pump is made of high-tech, and the high-hardness alloy layer is sprayed on the surface of the stainless steel plug body. The wear resistance is excellent, the service life of the plunger and the sealing ring is doubled, and the performance of the whole machine is stable and reliable. The medium used (clean water) must be kept clean and clean.

    The pump is provided with a pressure regulating unloading valve, and the liquid pump can automatically relieve pressure when the pressure plate of the vulcanizer is filled with a medium pressure suddenly exceeding a set value. (Factory has been set at 3Mpa)

Second, the hydraulic pump schematic: (see the figure below)

Third, the main technical parameters:

Rated discharge pressure 4Mpa

Theoretical flow 8L / min

Pump speed 2800r / min

Working medium

Matching motor 1.1KW

Three-phase motor 50HZ380V

Lubricating oil 30 or more 40 oil 0.87L

Machine weight 23kg

Dimensions (length × width × height) 560 × 250 × 395mm
